SMART IIoT HARDWARE

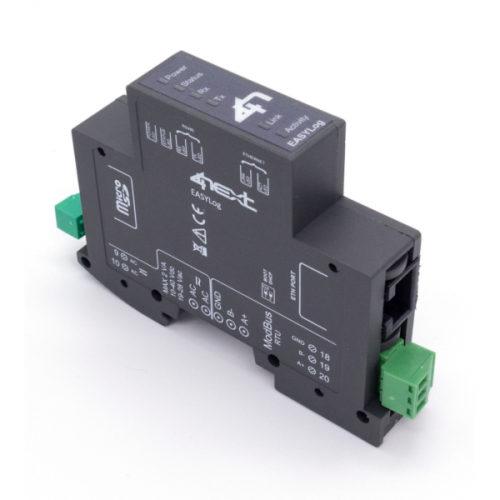

EasyLog XL is a gateway that can be easily connected to all ModBus RTU and TCP devices (even simultaneously) without programming, and then send data to cloud systems via MQTT.

The integrated web server allows quick and intuitive configuration and display of all variables. The collected Modbus data can then be transmitted bidirectionally via MQTT to cloud servers (e.g. the VISUALYS IIoT platform).

EasyLogXL naturally implements the latest data security technologies such as TLS protocol and MQTT certificate management.

Typical applications:

• Energy monitoring
• Consumption measurement
• Water treatment
• Management of renewable energy generation plants
• Process control
• Acquisition of machine data
• Management of temperature control systems (cooling systems, HVAC, humidification, and heating systems).

Communication to the Internet can be established via an existing router (e.g. Ewon Cosy) or the existing company network.

EasyNET is a 4G gateway (not a VPN router) that can be easily connected to all Modbus RTU and TCP devices (even simultaneously) without programming, and then send data to cloud systems (e.g. VISUALYS IIoT platform) via MQTT.

The web interface and the settings options for data acquisition are identical to the EasyLog series. Thanks to the integrated 4G modem, this device is ideally suited to send and receive data independently of the existing infrastructure.

EasyNET naturally implements the latest data security technologies such as TLS protocol and MQTT certificate management.

Typical uses:

• Acquisition of data from any metering devices (energy, water, gas).
• Water treatment
• Renewable energies
• Industrial applications
• Process control
• Building automation
• Industrial Automation
• Measurements in thermal power plants
• Monitoring of food products

The communication to the internet is done via the integrated 4G modem and can of course alternatively be established via an existing router (e.g. Ewon Cosy) or the existing company network.

Ewon Flexy, the swiss army knife among the industrial VPN routers on the market.

The Ewon Flexy is able to perform local data acquisition using the serial or Ethernet port. The data acquisition process is built around a tagged database in which each tag is associated with an I/O server. The Ewon Flexy is able to perform data acquisition with the following protocols: Modbus RTU, Modbus TCP, Uni-Telway, EtherNet/IP, DF1, FINS TCP, FINS Hostlink, ISO TCP, PPI, MPI, Profibus, Mitsubishi FX, Hitachi EH, ASCII.

Continuous data logging and buffering can be performed on every tagname. Each tagname can be logged on a fixed interval or on change (with deadband). Ewon stores tag data values (+ timestamp) in its internal database (up to 1,000,000 timestamp points) for statistical analysis and later review (historical logging) or to analyze recent trends (real-time logging).
